Universal Testing Machine Accessories
We offer a wide range of fixtures and accessories as below
Grips,Fixtures and attachments:
We offer a wide range of Grips, fixtures and attachments customized to your application requirements for range of tests.
Tensile Testing

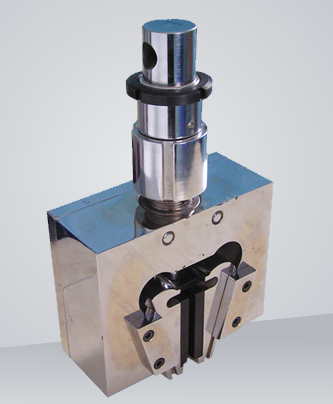

Kalpak Self Tightening
Wedge Tensile Grips
Features:
Capacity Options: 10KN,30 KN, 50 KN, 100 KN
Can Test Flat as well as round samples
Applications: Metals, Plastics,Wires, Wooden
products, Composites etc
Screw Clamping Tensile
Grips
Features:
Capacity Options:100 N, 1KN, 10 KN
Capacity Options:100 N, 1KN, 10 KN
Wide Ranges of Thickness up to 30 m
Applications: Plastics, Textiles, Paper, Foil, Wires, Metals etc
Kalpak Double Bollard
Tensile Grip
Features:
Capacity Options:1KN, 10 KN, 50 KN, 100 KN
Can Test round samples
Applications: Ropes, Yarns, Twines
Self Tightening Eccentric
Roller Tensile Grips
Features:
Capacity Options:1KNGeneral
Purpose Grip suitable for
flat samples Typical Sample
Size: Thickness 0-6mm, Width: 25 mm
Applications: Rubber
Compression Testing

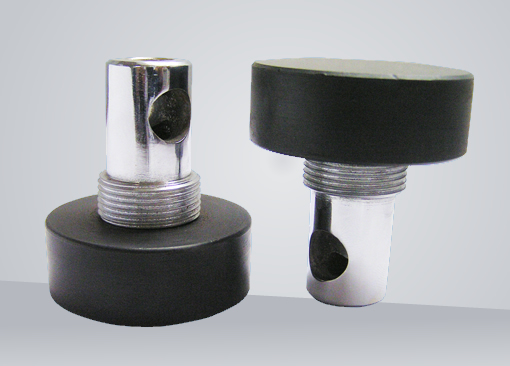

Kalpak Compression
Plates
Features:
Capacity Options: 1KN, 10 KN, 100 KN
Typical Sizes: Round: Up to 150mm
Square: up to 200 mm
Applications: Any material Special ball seated compression testing
fixture available against specific requirements
Kalpak Bending / Flexure
Testing Fixture
Features:
Capacity Options:1KN,10 KN, 50 KN
Options:3 Point Bending Fixture, 4 Point bending Fixture.
Applications: Any material
Kalpak Adhesion/Bonding
Test Fixtures
Features:
Capacity Options:1KN
Self Tightening Eccentric
Roller Tensile Grips
Features:
Capacity Options:1KNGeneral
Purpose Grip suitable for flat samples Typical Sample
Size: Thickness 0-6mm, Width: 25 mm
Applications: Rubber
Special Purpose Test Fixtures
We also offer Special Purpose Test Fixtures like Shear Test Fixture, Panel Shear Strength Modulus of Rigidity Testing,Nail /Screw Holding Test, Lateral Nail Resistance Fixture, Cleavage Testing , Static Hardness Testing, Friction Test
Extensometers
We offer two types of Electronic extensometers for direct extension measurement
1. LVDT type Electronic extensometers
Electronic Extensometer Type:
LVDT Excitation: 10 V DC,
Measuring range: 2 mm
Gauge Length : 25 mm, Resolution: 0.001mm Specimen
Dimensions: Flat 0.5 mm to 5 mm, Round upto 12 mm dia. Out put compatible to Kalpak make UTM
2. Strain Gauge type Electronic Extensometer
50 mm Gauge length, +100% -10% Maximum Strain, Metric Calibration, Self-Identifying output compatible to Kalpak make UTM
Environment Test Chambers
- For Elevated temperature Testing
- Test chamber size as per Customer Requirements Temperature
- Range: 20-300 Degree Centigrade
- Heating Rate: 2-10 Degree /Minute
- Temperature Uniformity: within Chamber at +/- 2 Degree Centigrade
Additional Load Cells
We can supply additional load cells to measure different load ranges with greater accuracy. The range offered is from 1 N to 250 KN

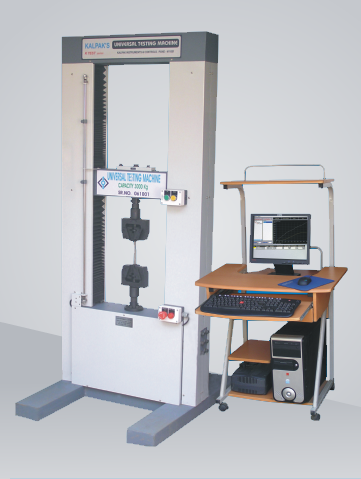

Kalpak Computerized Universal testing Machines are ideal for quality control, R&D / and Process troubleshooting. Wide range of tests can be conducted as per latest ASTM/BS/ISO/DIN standards making them essential for Material Test laboratories of ISO certified companies.
